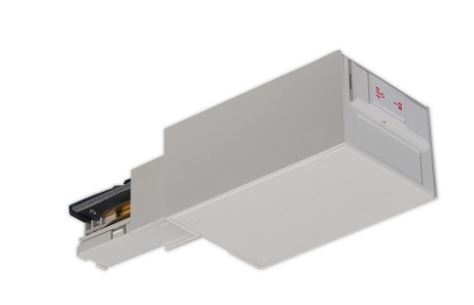

LIGHTOLIER 6099WH POWER TRIP KIT

Description

LIGHTOLIER CURRENT LIMITER KIT- END FEED 6099WH 912400462297 1. WIRE COVER: PLASTIC POLYCARBONATE. INCLUDES CODE COMPLIANT WARNING LABEL AGAINST TAMPERING WITH DEVICE. 2. MOUNTING PLATE: .075 THICK GALVANIZED STEEL. 3. ROUND KNOCK OUT: (2) 7/8 DIA. KNOCKOUTS FOR ELECTRICAL FEED. OFFSET TO ACCOMMODATE GRID CEILING RUNNERS. 4. GROUND TERMINALS: (2) GROUND TERMINALS FOR SUPPLY GROUND WIRE. 5. RECTANGULAR KNOCK OUT: ALLOWS FEEDING FROM J-BOX WITH PROPER UL AREA FOR SPLICE INSPECTION WITHOUT REMOVING CONNECTOR FROM J-BOX. 6. MOUNTING HOLES: (4) HOLES ON 3.5 IN. CENTERS SECURE CONNECTOR TO J-BOX OR MOUNTING SURFACE.
