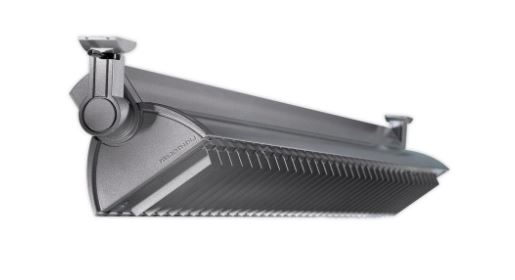

LIGHTOLIER – 9476NWH – MARK 10 DIMM

Description

000912400472873 – MARK 10 DIMMING BALLAST 1. BALLAST & REFLECTOR HOUSING: ALUMINUM WITH DIE-CAST ENDCAPS. 2. BALLAST: 54W ELECTRONIC. 3. FLOOD REFLECTOR: ALUMINUM WITH HIGHLY REFLECTIVE AND SEMISPECULAR FINISH FOR A SMOOTH WASH OF LIGHT. 4. LOUVER: ALUMINUM FOR GLARE CONTROL WITH CAPTIVE LOCKING SPRINGS FOR EASY INSTALLATION AND REMOVAL. 5. VERTICAL PIVOT: DIE CAST ROTATION HOUSING WITH POSITIVE ROTATION STOP PROVIDES 0° (NADIR) –130° VERTICAL ROTATION IN BOTH DIRECTIONS. 6. SOCKETS: 600V RATED MINI BI-PIN SOCKETS WITH 90° ROTOR LOCK TO ENGAGE CONTACTS AND RETAIN WITH A POSITIVE DETENT. 7. SOCKET BRACKET: ADJUSTABLE STEEL MOUNTING BRACKET SLIDES OUT FOR EASY LAMPING. 8. ATTACHMENT FITTING: MOLDED POLYCARBONATE; PIN ROTATES FITTING INTO TRACK TO ENGAGE LUMINAIRE 9. BRASS CONTACT: EXTENDS FOR CONNECTION TO SECOND CIRCUIT IN ADVENT® LYTESPAN TRACK. 10. TRACK ADAPTER ARM: DIE-CAST ALUMINUM WITH INTEGRAL POLARITY KEYGUARD.
